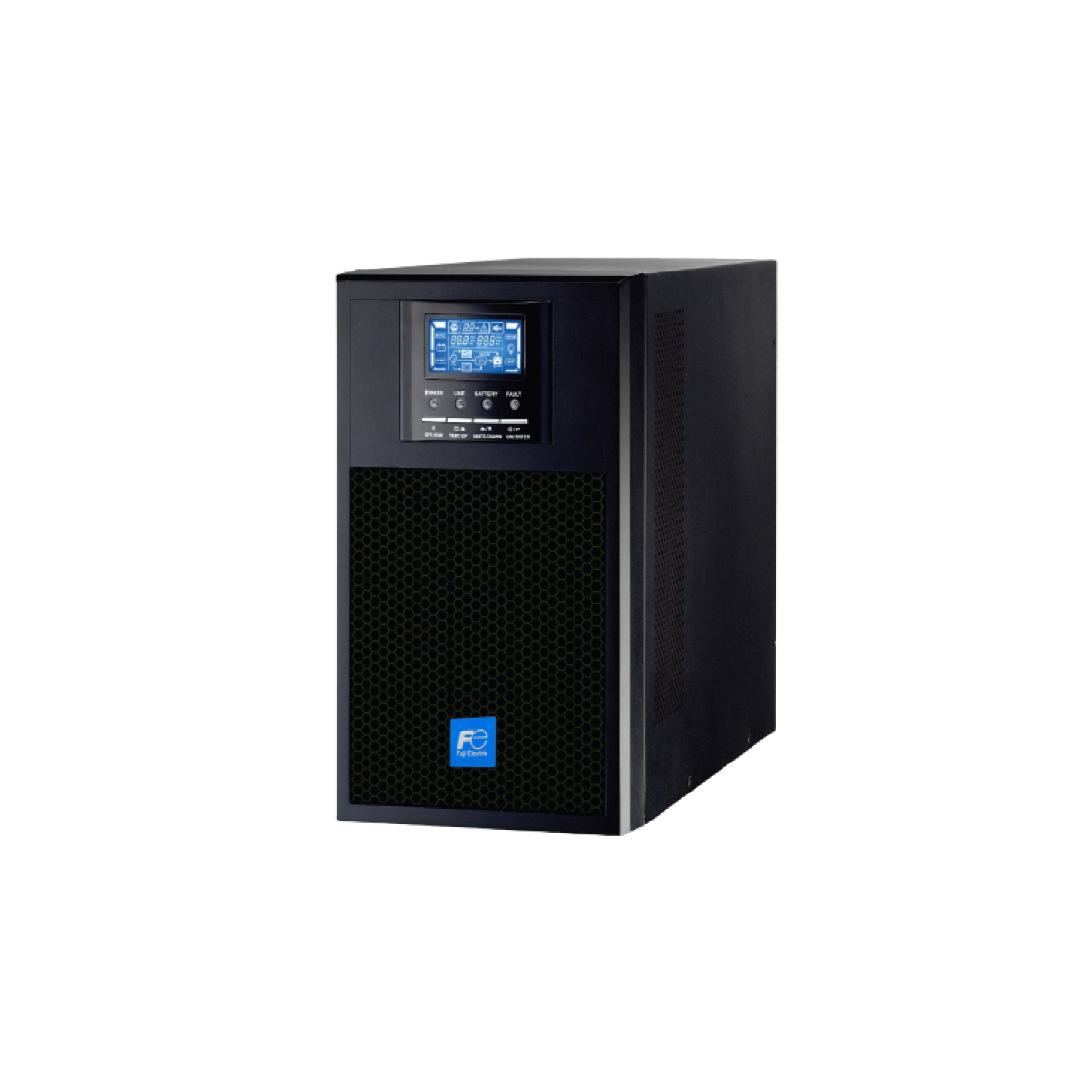

Fuji Electric 10 KVA Online UPS
Fuji Electric

Fuji Electric 10 KVA Online UPS

Out of stock

Finch PW ensures that equipment functions without power interruptions when power quality is questionable and outages are frequent. Finch PW adjusts to charging current from 1A to 6A depending on the requirement and with an additional charger, Finch PW can support longer backup times. It is ideal for ATMs, banking, and other business-critical applications where long backup periods are essential.

रु. 2,09,999
VAT bill available
Order via WhatsApp Call +977-9857025533
Out of stock Genuine warranty
Download catalog (PDF)

Product overview

Features and Benefits

  • Online double conversion UPS.
  • Input power factor corrector 0.99 (PFC).
  • Automatic bypass, allow to transfer the load to the mains in case of overload or internal fault.
  • Inbuilt Isolation Transformer (optional) provides a galvanic isolation between the mains and the loads.
  • Hot standby Configuration to ensure the availability of Quality power to mission critical applications.
  • Battery cold start feature allows UPS to be powered on from the battery without utility.

Specifications

AC Mode93%
Additional Charger8A
Battery Numbers16 Nos.
Capacity10 KVA
Charging Current (Max)1A/2A/4A(Adjustable)
ConfigurationSingle Phase with Ground
Current Crest Ratio3:1
Efficiency (AC Mode)90%
ModelFinch PW
Height (mm)335
Humidity20-90 % RH @ 0-40°C (Non-Condensing)
IndicatorsLCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators)
Input Frequency Range46 Hz ~54 Hz
Input Power Factor≥ 0.99 @ Nominal Voltage (100% load)
Input Voltage Range110-300V AC (at 50% Load) or 176-300V AC (at 100% Load)
Length (mm)400
Noise LevelLess than 58dB & 1 Meter
Nominal Input Voltage200/208/220/230/240VAC
Output ConnectionTerminals
Output Frequency Range (Battery Mode)50 Hz +/- 0.1 Hz
Output Frequency Range (Synchronized Range)46~54 Hz
Output Voltage200/208/220/230/240VAC
Output Voltage Regulation'+/-7%
Overload105%- 100%: 10 Mins 110%-130%: 1 Min 130%> : 3 Sec
Waveform (Battery Mode)Pure Sinewave
Weight16 Kgs
Width (mm)195

Frequently asked questions

Yes. Every Fuji Electric 10 KVA Online UPS is 100% genuine, factory-sealed stock backed by the manufacturer warranty. Inverter House is an authorised dealer — we never sell refurbished or grey-market units.
We deliver and professionally install in Butwal and the Kathmandu Valley, and ship across Nepal. Our certified technicians handle the wiring, commissioning and a quick walkthrough so it's ready to use.
We confirm your order by phone first — then you can pay cash on delivery, by card or bank transfer. EMI is available on selected credit cards. No online payment is needed to place a request.
Online double-conversion means incoming power is continuously regenerated, so your equipment always runs on clean, stable output with zero transfer time when the grid fails.
Yes. Rated 10 KVA, it's built for servers, network rooms, labs and medical devices that need uninterrupted, conditioned power.
Runtime depends on the connected load and battery configuration. We'll size the battery bank to your required backup time as part of the installation.
