Fuji Electric 3 KVA Online UPS with Inbuilt Battery
Fuji Electric 3 KVA Online UPS with Inbuilt Battery
Fuji Electric

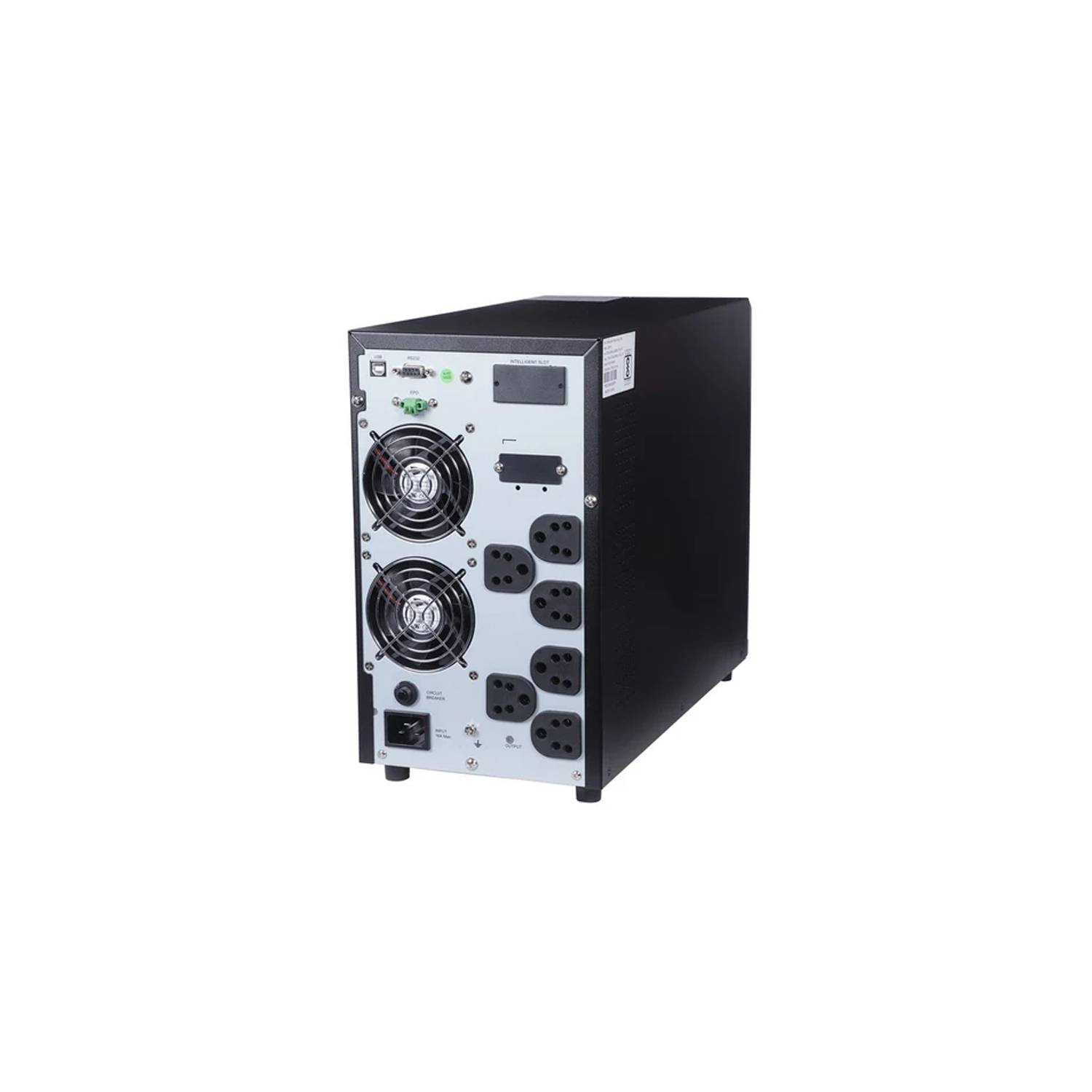

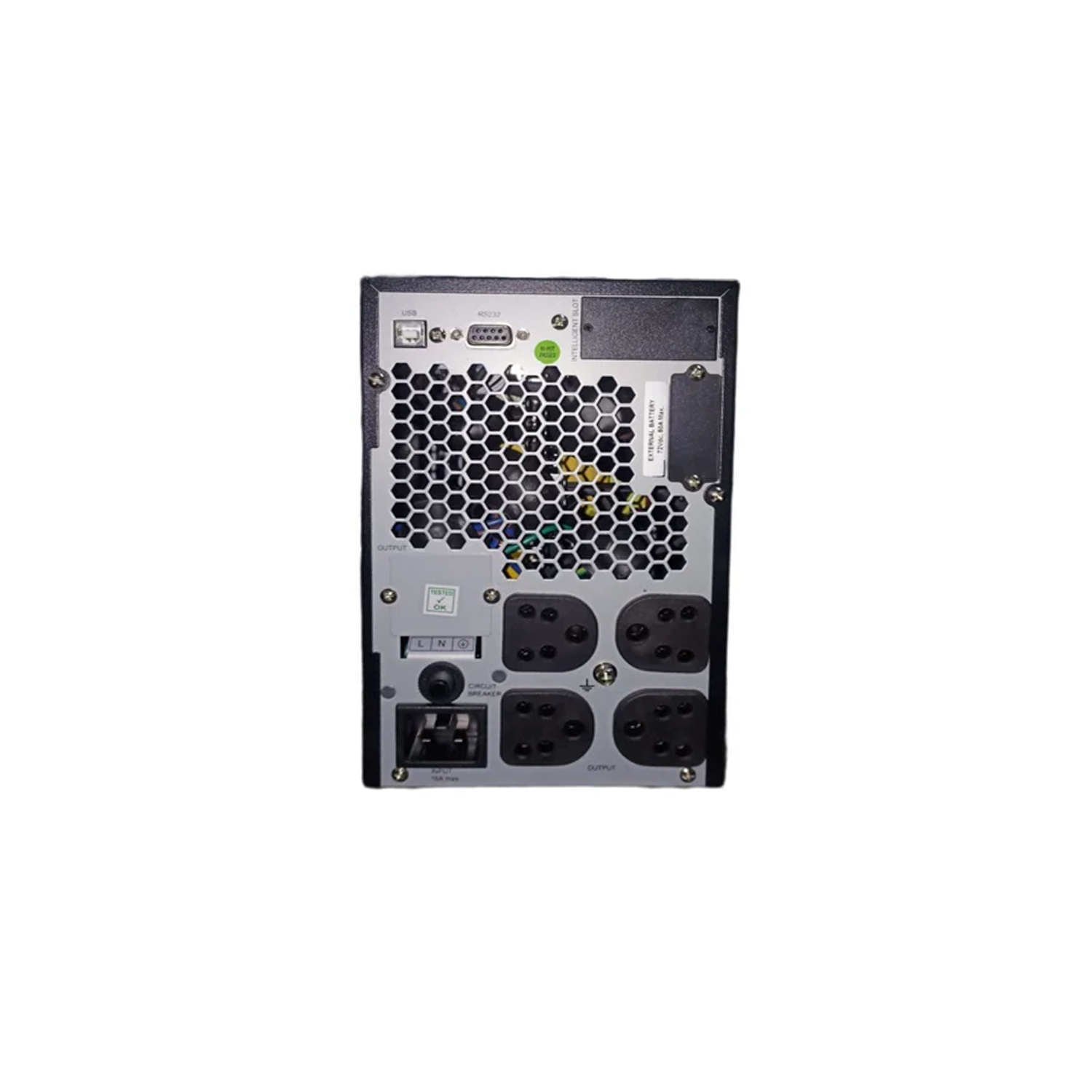

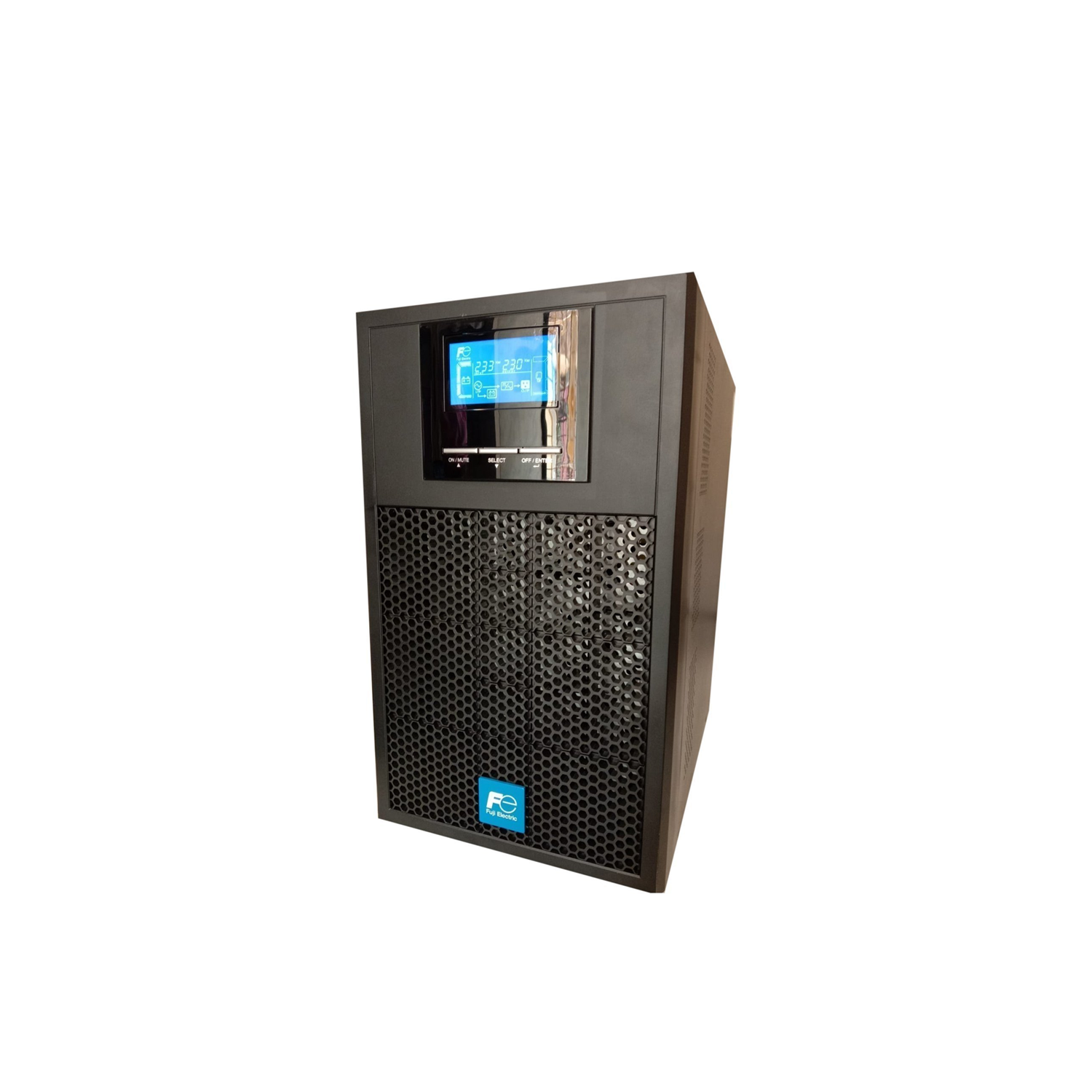

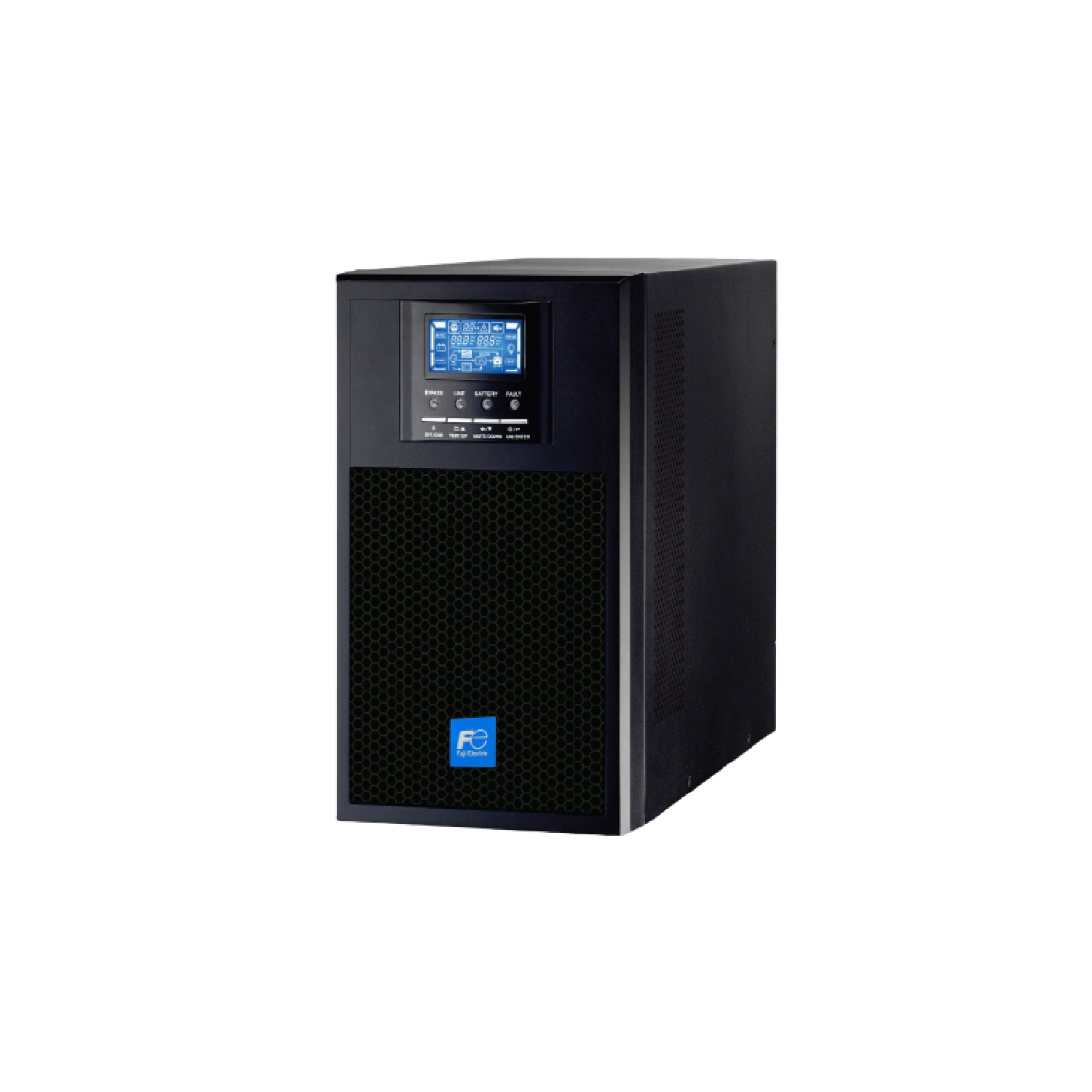

Fuji Electric 3 KVA Online UPS with Inbuilt Battery

In stock

Fuji Electric Finch PW series Online UPS ensures that equipment functions without power interruptions when power quality is questionable and outages are frequent. It adjusts to charging current from 1A to 6A depending on the requirement and with an additional charger, can support longer backup times. It is ideal for ATMs, banking, and other business-critical applications where long backup periods are essential.

रु. 72,999
VAT bill available
Order via WhatsApp Call +977-9857025533
In stock Genuine warranty

Product overview

Features and Benefits

  • Online double conversion UPS.
  • Input power factor corrector 0.99 (PFC)
  • Automatic bypass, allow to transfer the load to the mains in case of overload or internal fault
  • Inbuilt Isolation Transformer (optional) provides a galvanic isolation between the mains and the loads
  • Hot standby Configuration to ensure the availability of Quality power to mission critical applications
  • Battery cold start feature allows UPS to be powered on from the battery without utility

Specifications

Additional Charger10A
Battery Capacity7 Ah* 8 Nos.
Battery Numbers8
Capacity3 KVA (2.4 KW)
Charging Current (Max)1A/2A/4A/6A (Adjustable)
ConfigurationSingle Phase with Ground
Current Crest Ratio03:01
Efficiency (AC Mode)90%
GeneralFinch PW
Humidity20-90 % RH @ 0-40°C (Non-Condensing)
IndicatorsLCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators)
Input Frequency Range40 Hz ~70 Hz
Input Power Factor≥ 0.99 @ Nominal Voltage (100% load)
Input Voltage Range110-300V AC (at 50% Load) or 160-280V AC (at 100% Load)
Noise LevelLess than 58dB & 1 Meter
Nominal Input Voltage200/208/220/230/240VAC
Output Frequency Range (Battery Mode)50 Hz +/- 0.25 Hz
Output Frequency Range (Synchronized Range)47~53 Hz
Output Voltage200/208/220/230/240VAC
Output Voltage Regulation'+/-7%
Overload105%- 100%: 10 Mins 110%-130%: 1 Min 130%> : 3 Sec
Waveform (Battery Mode)Pure Sinewave

Frequently asked questions

Yes. Every Fuji Electric 3 KVA Online UPS with Inbuilt Battery is 100% genuine, factory-sealed stock backed by the manufacturer warranty. Inverter House is an authorised dealer — we never sell refurbished or grey-market units.
We deliver and professionally install in Butwal and the Kathmandu Valley, and ship across Nepal. Our certified technicians handle the wiring, commissioning and a quick walkthrough so it's ready to use.
We confirm your order by phone first — then you can pay cash on delivery, by card or bank transfer. EMI is available on selected credit cards. No online payment is needed to place a request.
Online double-conversion means incoming power is continuously regenerated, so your equipment always runs on clean, stable output with zero transfer time when the grid fails.
Yes. Rated 3 KVA (2.4 KW), it's built for servers, network rooms, labs and medical devices that need uninterrupted, conditioned power.
Runtime depends on the connected load and battery configuration. We'll size the battery bank to your required backup time as part of the installation.
