Fuji Electric

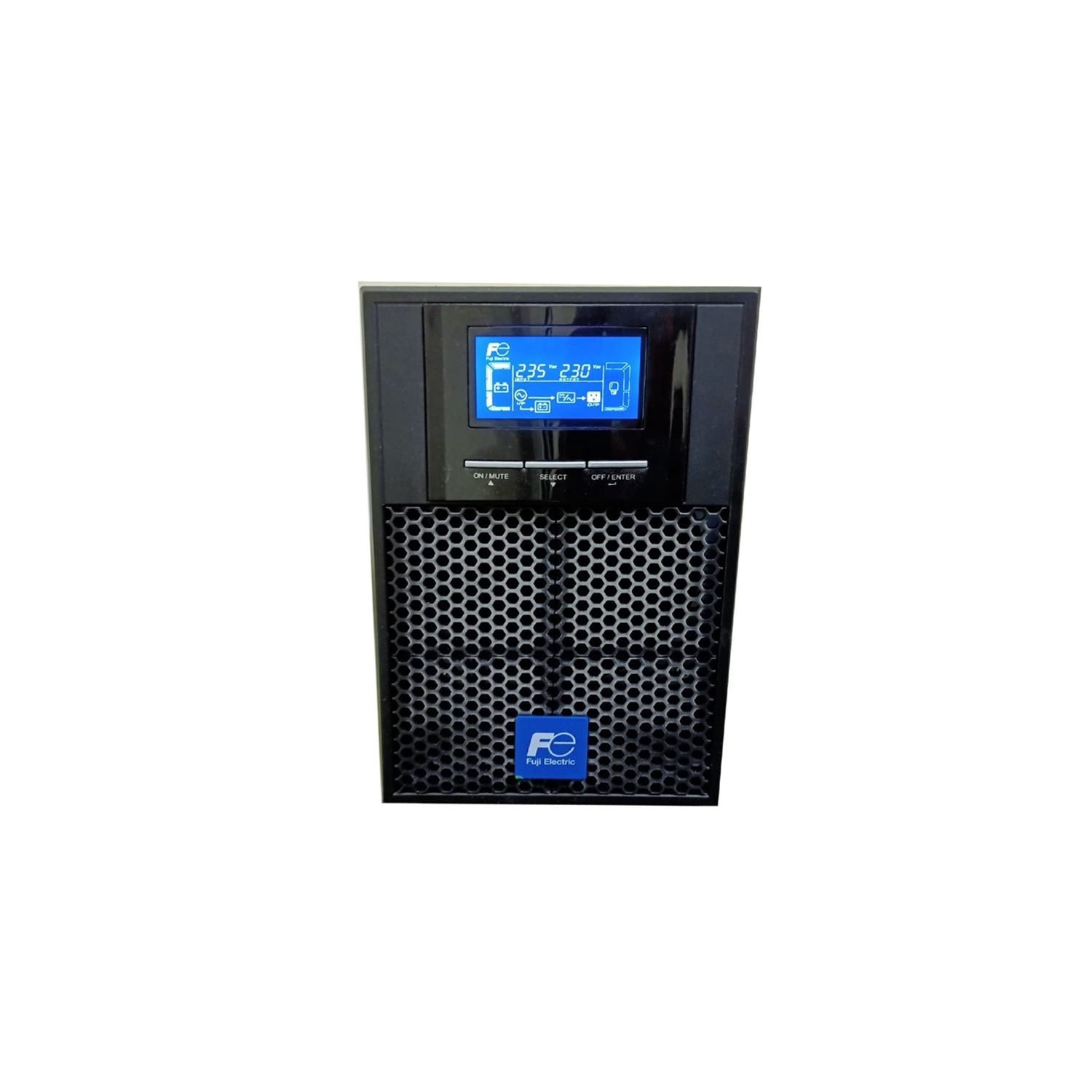

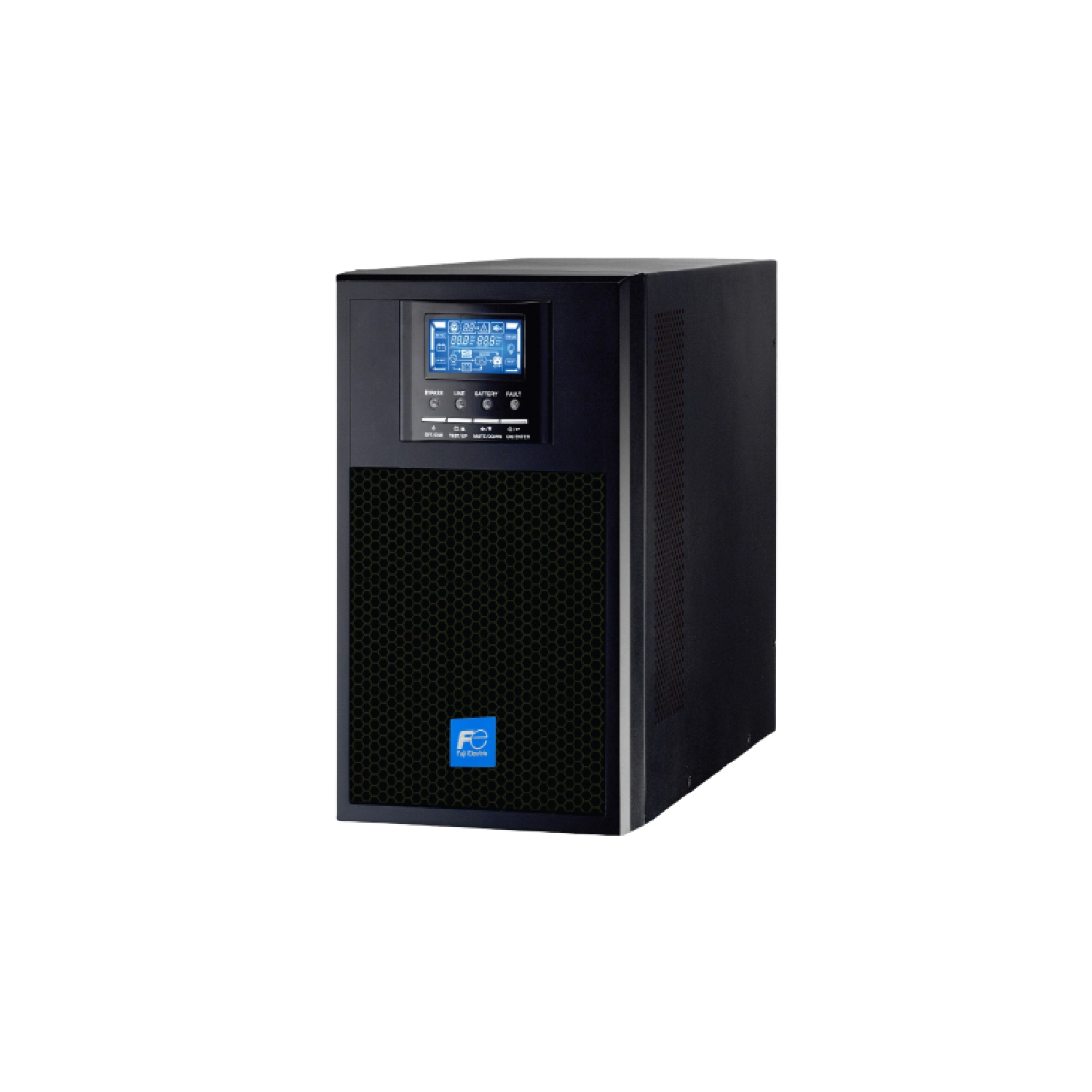

Fuji Electric 1 KVA Online UPS
Finch PW ensures that equipment functions without power interruptions when power quality is questionable and outages are frequent. Finch PW adjusts to charging current from 1A to 6A depending on the requirement and with an additional charger, Finch PW can support longer backup times. It is ideal for ATMs, banking, and other business-critical applications where long backup periods are essential.
रु. 36000.00
VAT bill available EMI consultation
In stock Free delivery Genuine warranty
100% Genuine
Factory-sealed, authentic products
Free Delivery
Across Nepal on all orders
Expert Install
Certified technician setup
After-sales
Dedicated support team
Specifications
| Length (mm) | 145 |
| Width (mm) | 280 |
| Height (mm) | 225 |
| General | Finch PW |
| Configuration | Single Phase with Ground |
| Capacity | 800 w |
| Nominal Input Voltage | 200/208/220/230/240VAC |
| Input Voltage Range | 110-300V AC (at 50% Load) or 160-280V AC (at 100% Load) |
| Input Frequency Range | 47 Hz ~53 Hz |
| Input Power Factor | ≥ 0.99 @ Nominal Voltage (100% load) |
| Output Voltage | 200/208/220/230/240VAC |
| Output Voltage Regulation | '+/-7% |
| Output Frequency Range (Synchronized Range) | 46~54 Hz |
| Output Frequency Range (Battery Mode) | 50 Hz +/- 0.25 Hz |
| Current Crest Ratio | 03:01 |
| Waveform (Battery Mode) | Pure Sinewave |
| Overload | 105%- 100%: 10 Mins 110%-130%: 1 Min 130%> : 3 Sec |
| Efficiency (AC Mode) | 88% |
| Battery Numbers | 3 Pcs |
| Charging Current (Max) | 1A/2A/4A/6A (Adjustable) |
| Additional Charger | 10A |
| Indicators | LCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators) |
| Humidity | 20-90 % RH @ 0-40°C (Non-Condensing) |
| Noise Level | Less than 58dB & 1 Meter |
| Output Connection | 5A, 3 Sockets |
| Weight | 4.1 Kgs |
| Certificates | BIS, ISO 9001, ISO 14001, ISO 45001 |
