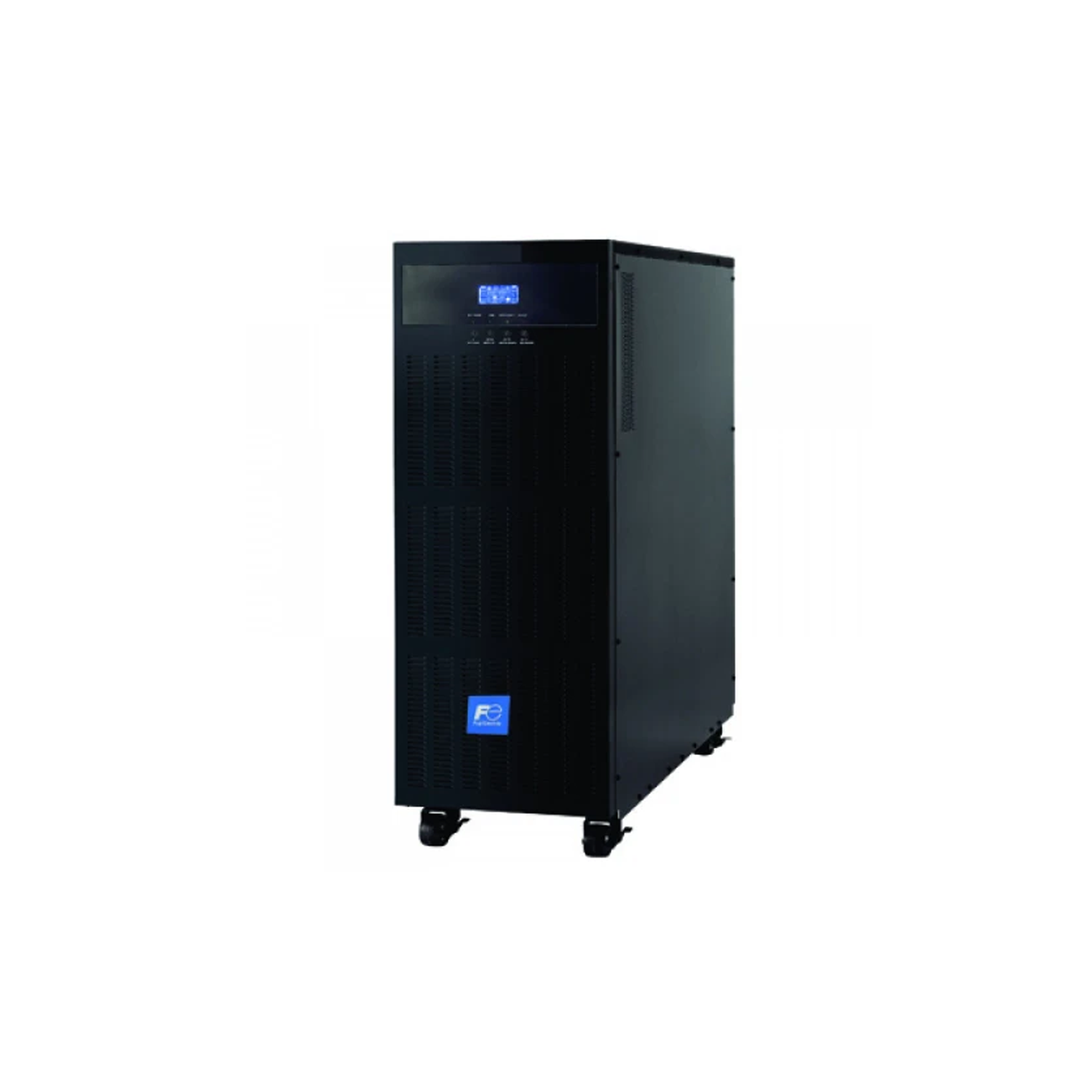

Fuji Electric 20 KVA Online UPS

Name: Fuji Electric 20 KVA Online UPS
Brand: Fuji Electric
Availability: OutOfStock

Out of stock

Fuji Electric offers one of the broadest ranges of power backup solutions for the India market. Our UPS products are specially designed for variety of applications including harsh industrial, light industrial, commercial, IT& ITES, data center, healthcare, surveillance, BFSI and SOHO segments.

Price on request

This one is quoted to order. Message or call us and we will send you a price today.

VAT bill available

Order via WhatsApp Call +977-9857025533 Send enquiry by email →

Out of stock Genuine warranty

100% Genuine
Factory-sealed, authentic products
Expert Install
Certified technician setup
After-sales
Dedicated support team

Product overview

Features & Benefits

Online double conversion UPS.
Input power factor corrector 0.99 (PFC)
Automatic bypass, allow to transfer the load to the mains in case of overload or internal fault
Hot standby Configuration to ensure the availability of Quality power to mission critical applications
Battery cold start feature allows UPS to be powered on from the battery without utility

Specifications

AC Mode	92%
Battery Numbers	20
Charging Current (Max)	1A/2A/4A(Adjustable)
Configuration	Single Phase with Ground
Current Crest Ratio	03:01
Dimensions (LBH)	421190690 mm
Efficiency (AC Mode)	90%
Humidity	20-90 % RH @ 0-40°C (Non-Condensing)
Indicators	LCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators)
Input Frequency Range	46 Hz ~54 Hz
Input Power Factor	≥ 0.99 @ Nominal Voltage (100% load)
Input Voltage Range	110-300V AC (at 50% Load) or 176-300V AC (at 100% Load)
Model	Finch PW
Noise Level	Less than 58dB & 1 Meter
Nominal Input Voltage	200/208/220/230/240VAC
Output Connection	Terminals
Output Frequency Range (Battery Mode)	50 Hz +/- 0.1 Hz
Output Frequency Range (Synchronized Range)	46~54 Hz
Output Voltage	200/208/220/230/240VAC
Output Voltage Regulation	'+/-7%
Overload	105%- 100%: 10 Mins 110%-130%: 1 Min 130%> : 3 Sec
Warranty	1 Year
Waveform (Battery Mode)	Pure Sinewave

Frequently asked questions

Yes. Every Fuji Electric 20 KVA Online UPS is 100% genuine, factory-sealed stock backed by 1 Year. Inverter House is an authorised dealer — we never sell refurbished or grey-market units.

We deliver and professionally install in Butwal and the Kathmandu Valley, and ship across Nepal. Our certified technicians handle the wiring, commissioning and a quick walkthrough so it's ready to use.

We confirm your order by phone first — then you can pay cash on delivery, by card or bank transfer. EMI is available on selected credit cards. No online payment is needed to place a request.

Online double-conversion means incoming power is continuously regenerated, so your equipment always runs on clean, stable output with zero transfer time when the grid fails.

Yes. Rated its rated capacity, it's built for servers, network rooms, labs and medical devices that need uninterrupted, conditioned power.

Runtime depends on the connected load and battery configuration. We'll size the battery bank to your required backup time as part of the installation.
