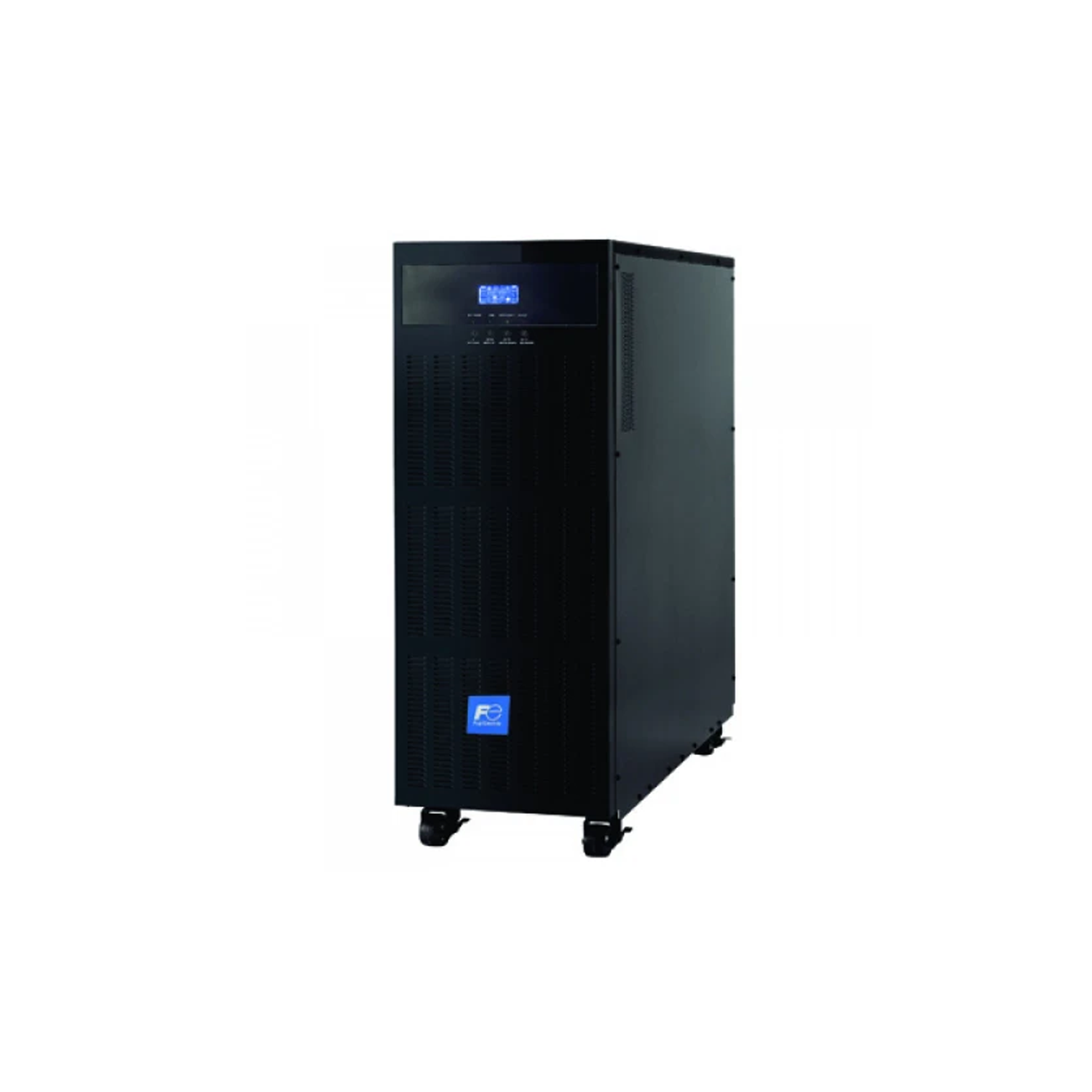

Fuji Electric 20 KVA Online UPS with Isolation Transformer
Fuji Electric

Fuji Electric 20 KVA Online UPS with Isolation Transformer

Out of stock

Fuji Electric offers one of the broadest ranges of power backup solutions for the India market. Our UPS products are specially designed for variety of applications including harsh industrial, light industrial, commercial, IT&ITES, datacenters, healthcare, surveillance, BFSI and SOHO segments.

Price on request

This one is quoted to order. Message or call us and we will send you a price today.

VAT bill available
Order via WhatsApp Call +977-9857025533
Out of stock Genuine warranty
Download catalog (PDF)

Product overview

Features & Benefits

  • Online double conversion UPS.
  • Input power factor corrector 0.99 (PFC)
  • Automatic bypass, allow to transfer the load to the mains in case of overload or internal fault
  • Inbuilt Isolation Transformer (optional) provides a galvanic isolation between the mains and the loads
  • Hot standby Configuration to ensure the availability of Quality power to mission critical applications
  • Battery cold start feature allows UPS to be powered on from the battery without utility

Specifications

Battery Numbers20 Nos.
ModelFinch PG
Capacity20 KVA
ConfigurationThree Phase Input and Single Phase Output
Input Voltage Range190-520 VAC (3 Phase)at 50% Load & 305-478 VAC (3 Phase) at 100% Load
Nominal Input Voltage400/415V (3 ph +N)
Output Voltage200/208/220/230/240VAC
Waveform (Battery Mode)Pure Sinewave
IndicatorsLCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators)
Warranty1 Year Warranty
Dimensions (L*B*H)592*250*826 mm

Frequently asked questions

An Online UPS provides output according to its rated power factor. For example, a 10 KVA UPS with a 0.9 power factor can provide up to 9,000 watts of output.
Yes, an Online UPS uses batteries for backup. Models with internal batteries typically provide around 5–10 minutes of backup, while external batteries can be connected for longer backup times depending on the required backup duration.
The required UPS capacity depends on your total load and equipment. For the right size and configuration, consult our technical team for expert guidance.
An Online UPS provides continuous, stable power with zero transfer time and better protection, while an inverter mainly provides backup power during outages. An Online UPS generally costs more because of its advanced power protection features, while an inverter is a more affordable option for regular home and office use.
Yes. Subject to stock availability, same-day delivery and installation are available in Kathmandu, Butwal, and nearby areas. Delivery is also available to other locations across Nepal, depending on location and delivery arrangements. Our team can deliver the product to your location and provide professional installation for a hassle-free setup.
