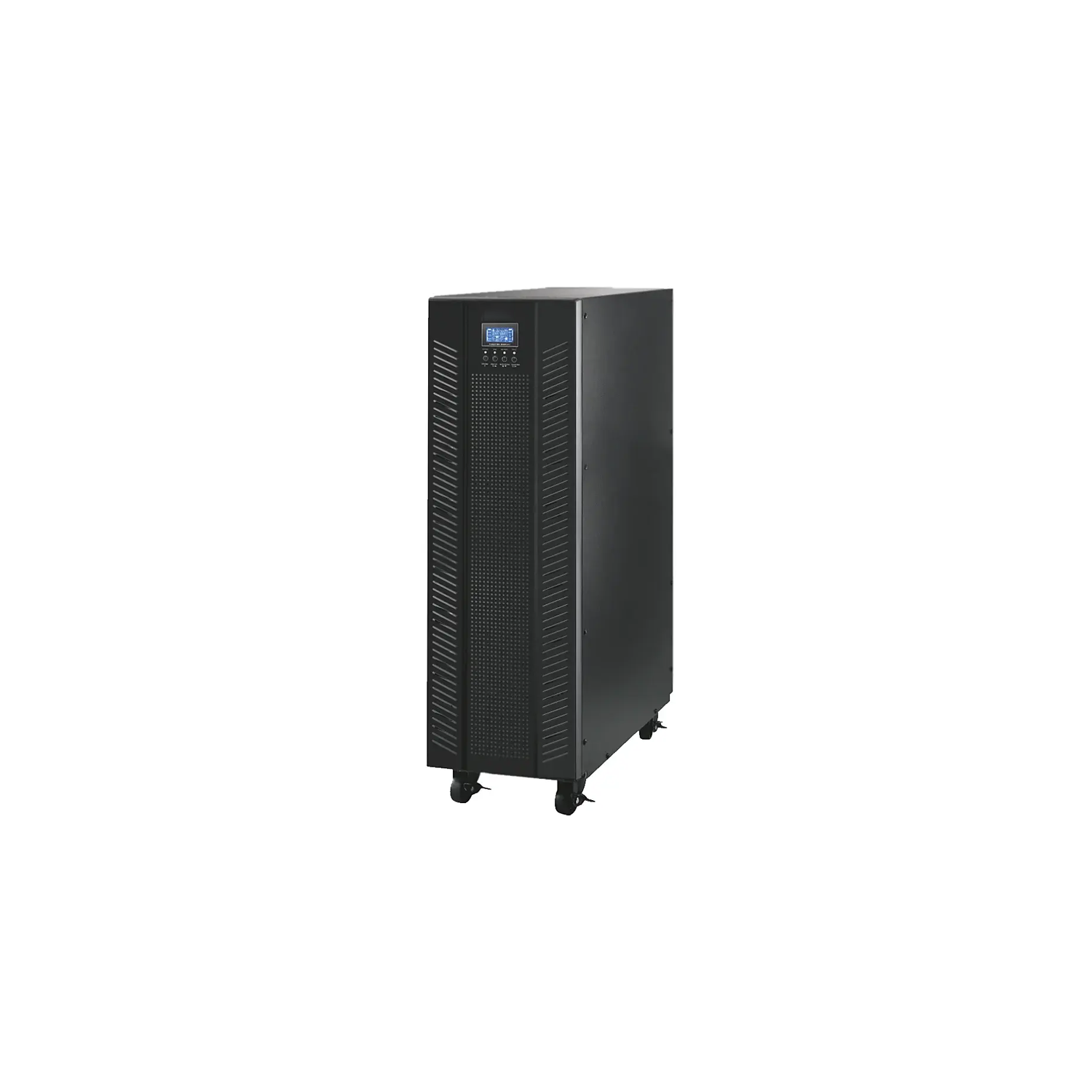

Fuji Electric 30 KVA Online UPS
Fuji Electric

Fuji Electric 30 KVA Online UPS

Out of stock

Fuji Electric Finch PG is an online double-conversion UPS (Uninterruptible Power Supply) designed to keep critical equipment running when power quality is poor or mains supply fails. It uses advanced DSP technology and active input power factor correction to deliver clean, stable power with higher efficiency and greater power density than conventional UPS systems (output power factor 0.9). It features automatic bypass for overload/fault conditions, dual mains inputs for better reliability, and flexible configurations (single-phase or three-phase in/out depending on capacity). It also supports parallel operation for extra capacity or redundancy and has a battery cold start capability to start from battery alone.

Price on request

This one is quoted to order. Message or call us and we will send you a price today.

VAT bill available
Order via WhatsApp Call +977-9857025533
Out of stock Genuine warranty

Product overview

Features & Benefits
  • Online double conversion UPS.
  • Input power factor corrector 0.99 (PFC)
  • Automatic bypass, allow to transfer the load to the mains in case of overload or internal fault
  • Inbuilt Isolation Transformer (optional) provides a galvanic isolation between the mains and the loads
  • Hot standby Configuration to ensure the availability of Quality power to mission critical applications
  • Battery cold start feature allows UPS to be powered on from the battery without utility

Specifications

Battery Numbers20
Capacity30 KVA/ 27KW
CertificatesBIS, ISO 9001, ISO 14001, ISO 45001
Charging Current (Max)12A
ConfigurationThree Phase Input & Three Phase Output
Current Crest Ratio03:01 (max)
Efficiency (AC Mode)92.1%
GeneralFinch PG
Height (mm)826
Humidity20-90 % RH @ 0-40°C (Non-Condensing)
IndicatorsLCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators)
Input Frequency Range46 Hz ~54 Hz or 56 Hz ~ 64 Hz
Input Power Factor≥ 0.99 @ Nominal Voltage (100% load)
Input Voltage Range190-520 VAC (at 50% Load) or 305-478V AC (at 100% Load)
Length (mm)815
Noise LevelLess than 58dB & 1 Meter
Nominal Input Voltage400V/415V (3ph + N)
Output Frequency Range (Battery Mode)50 Hz +/- 0.1 Hz or 60 Hz +/- 0.1 Hz
Output Frequency Range (Synchronized Range)47~53 Hz
Output Voltage400V/415V (3ph + N)
Output Voltage Regulation'+/-1%
Overload105%- 100%: 10 Mins 110%-130%: 1 Min 130%> : 3 Sec
Waveform (Battery Mode)Pure Sinewave
Weight64 Kgs
Width (mm)250

Frequently asked questions

Yes. Every Fuji Electric 30 KVA Online UPS is 100% genuine, factory-sealed stock backed by the manufacturer warranty. Inverter House is an authorised dealer — we never sell refurbished or grey-market units.
We deliver and professionally install in Butwal and the Kathmandu Valley, and ship across Nepal. Our certified technicians handle the wiring, commissioning and a quick walkthrough so it's ready to use.
We confirm your order by phone first — then you can pay cash on delivery, by card or bank transfer. EMI is available on selected credit cards. No online payment is needed to place a request.
Online double-conversion means incoming power is continuously regenerated, so your equipment always runs on clean, stable output with zero transfer time when the grid fails.
Yes. Rated 30 KVA/ 27KW, it's built for servers, network rooms, labs and medical devices that need uninterrupted, conditioned power.
Runtime depends on the connected load and battery configuration. We'll size the battery bank to your required backup time as part of the installation.
