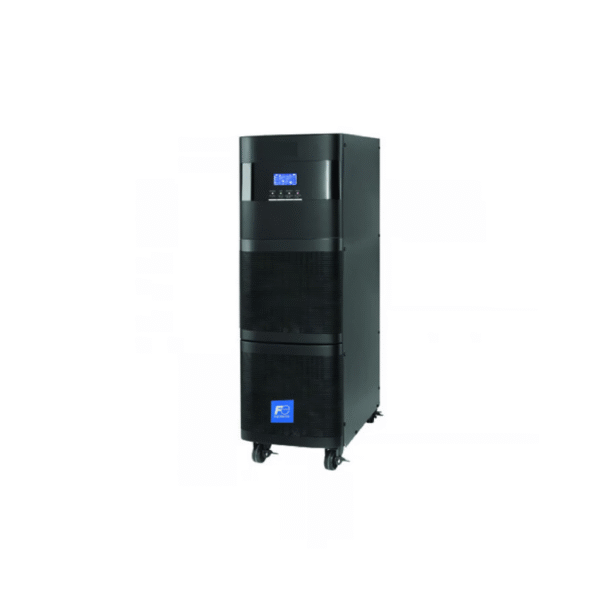

Fuji Electric 10 KVA Online UPS

₨ 326,000.00

Finch PG is a double conversion online ups with a power factor 0.9 providing higher quality power density, delivering 12.5% more power when compared with conventional UPS (designed with power factor of 0.8). Finch PG is with DSP Technology and active input power factor correction design to ensure better output voltage conditions, power quality and power performance at all times. Its dual mains input will secure the power reliability in areas with poor power quality.

Add to Wishlist
Add to Wishlist
SKU: 4-1 Category: Brand:

Description

Finch PW model of Fuji Electric Online UPS is typically designed for operation in poor power quality areas. It provides high power density with long backup time in compact size. It’s ideal for ATMs, Banking and other business critical applications where a higher backup time is required. It provides the flexibility to adjust charging current from 1A to 6A according to different applications and the possibility to have an additional charger to support longer backup times.

Features & Benefits

  • Online double conversion UPS.
  • Input power factor corrector 0.99 (PFC)
  • Automatic bypass, allow to transfer the load to the mains in case of overload or internal fault
  • Inbuilt Isolation Transformer (optional) provides a galvanic isolation between the mains and the loads
  • Hot standby Configuration to ensure the availability of Quality power to mission critical applications
  • Battery cold start feature allows UPS to be powered on from the battery without utility

Additional information

Brand

Fuji Electric
Nominal Input Voltage

200/208/220/230/240VAC
Input Voltage Range

110-300V AC (at 50% Load) or 160-280V AC (at 100% Load)
Frequency Range

40 Hz ~70 Hz
Power Factor

≥ 0.99 @ Nominal Voltage (100% load)
Output Voltage

200/208/220/230/240VAC
Output Voltage Regulation

± 1%
Output Frequency Range (Synchronised Range))

47~53 Hz
Output Frequency Range (Battery Mode)

50 Hz +/- 0.25 Hz
Current Crest Ratio

3:1
Harmonic Distortion

≤ 3% THD (Linear-Load)
≤ 6% THD (Non Linear Load)
Waveform (Batt. Mode)

Pure Sinewave
Overload

105%- 100%: 10 Mins 110%-130%: 1 Min 130%> : 3 Sec
Efficiency- AC Mode

88%
Battery Type

Depending on the capacity of external batteries
No. of Battery (External)

3
Battery Charging Current Max

1A/2A/4A/6A (Adjustable)
Additional Charger

10A
Indicators

LCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators)
Humidity

20-90 % RH @ 0-40°C (Non-Condensing)
Noise Level

Less than 58dB & 1 Meter
