Smarten

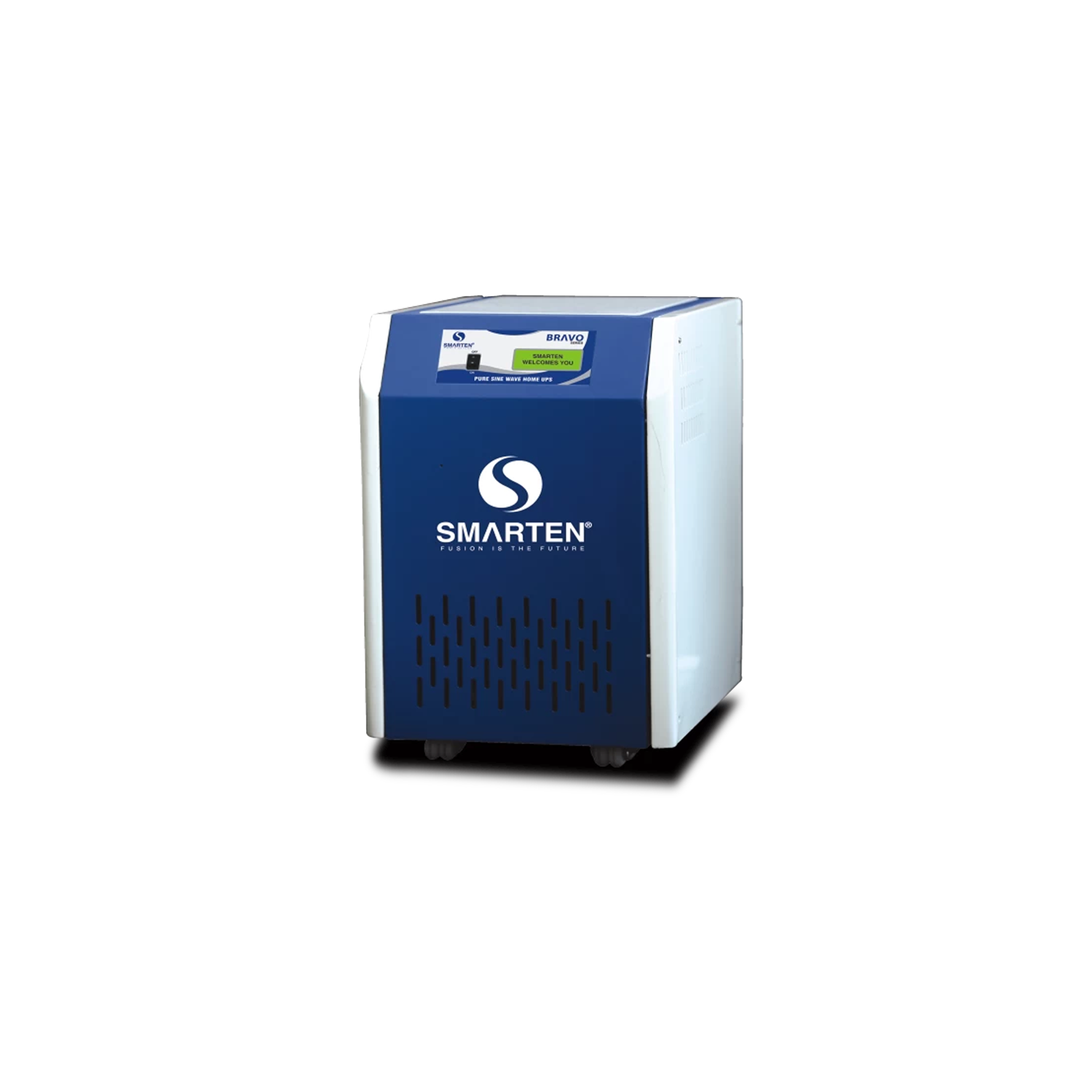

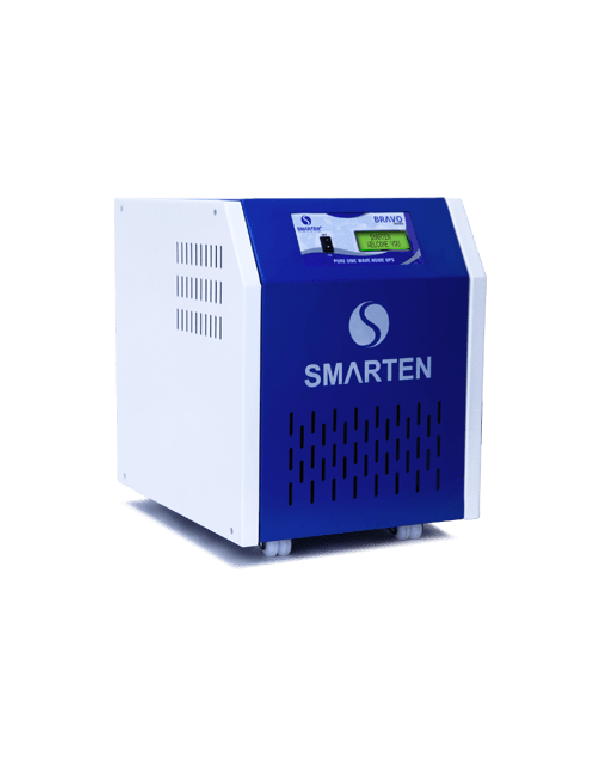

Smarten 5.5KVA UPS Bravo
The technically advanced BRAVO Home UPS operates on mains and supplies power while charging the battery when Mains supply is available. In case of a power outage, Bravo transfers the entire load to its optimally charged battery and supplies high quality AC power. Apart from the highest quality components and engineering, what makes Bravo special is the inbuilt stabilizer and charger. With Bravo there is no need to purchase an additional voltage stabilizer, or a charger for charge recovery in case the battery is exhausted. This is why it is becoming the most popular sine-wave UPS in the market.
रु. 84499.00
VAT bill available EMI consultation
In stock Free delivery Genuine warranty
100% Genuine
Factory-sealed, authentic products
Free Delivery
Across Nepal on all orders
Expert Install
Certified technician setup
After-sales
Dedicated support team
Specifications
| Length (mm) | 530 |
| Width (mm) | 360 |
| Height (mm) | 585 |
| Brand | Smarten |
| Model | Bravo |
| Rating | 5.5 KVA |
| Power Factor | 0.8 |
| DC Volt | 48V or 96V |
| No. of Battery | 4 or 8 |
| Output Voltage | 220VAC +5%-10% (until battery low alarm) |
| Mounting Type | Table Top |
| Battery Type | SMF / Tubular / Flooded LEAD ACID / Lithium Ion |
| Waveform | Pure Sinewave |
| Charging Current | 100 Ah-135 Ah : 12A/15A ± 2 Amp 150 Ah- 220 Ah: 15A/20A ± 2 Amp |
| Technology | Microcontroller based state-of-the-art technology Using MOSFETs. |
| LED Status Display | Mains ON, Input Voltage, Input Frequency, Battery Voltage, Battery Charging, Battery Charged, Charging Current, Backup Mode, UPS ON, UPS OFF, Battery Voltage, Load %, Output Voltage, Output Frequency, Mains Low Cut, Mains High Cut, Mains Not Available, Mains Frequency Cut |
| Buzzer | Audible beep for Overload, Short Circuit, Back feed, Low Battery, Over Temperature, Mains Fuse blown / MCB Trip |
| Protection against Reverse Battery | Battery MCB will Trip |
