Luminous

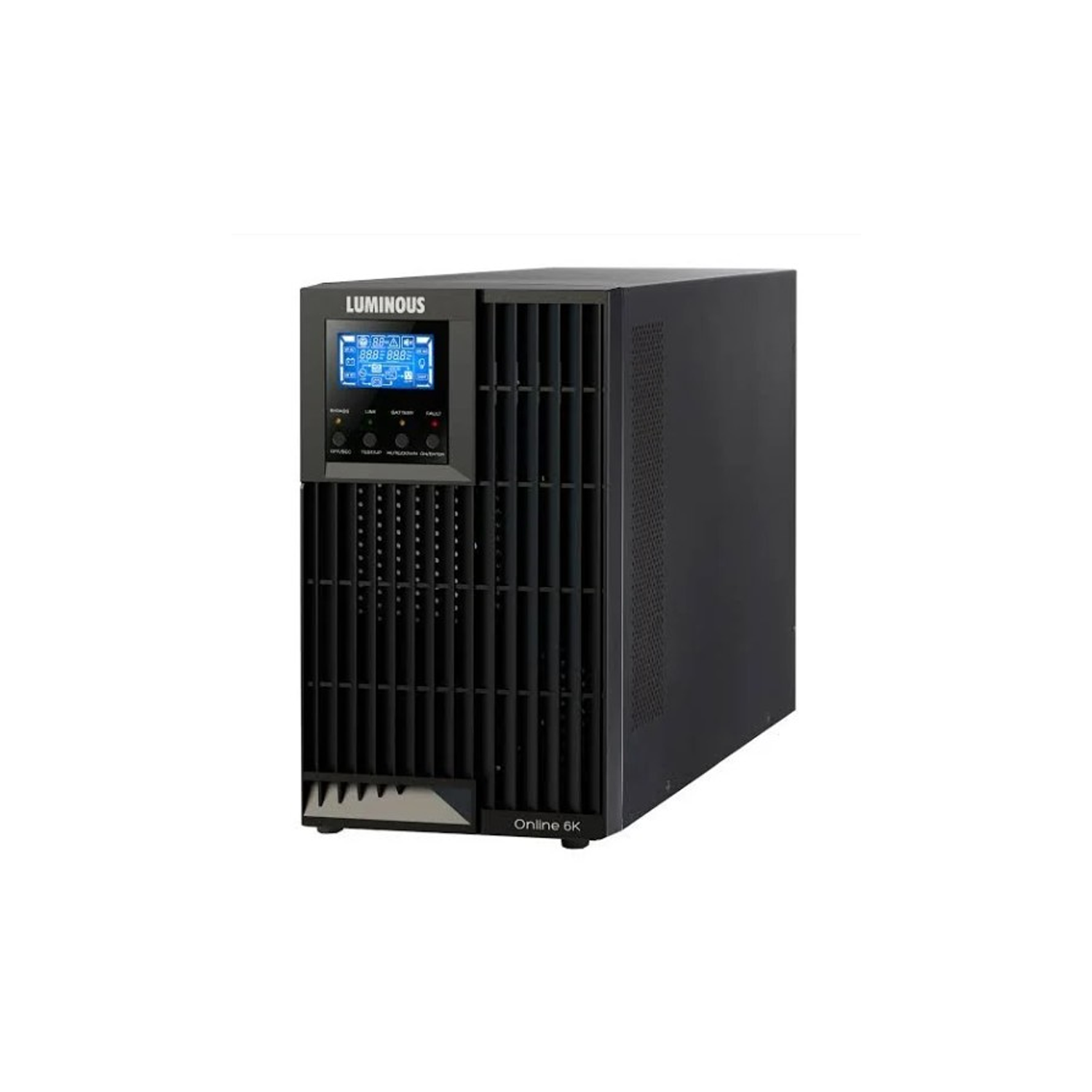

Luminous 6 KVA Online UPS
Luminous Online UPS protects your mission critical applications from downtime, data loss and corruption that inevitably hamper your productivity. The Luminous Online UPS range is designed to fit perfectly into any given environment where uninterrupted power feed is required to secure and ensure continuous operations.
रु. 126600.00
VAT bill available EMI consultation
In stock Free delivery Genuine warranty
100% Genuine
Factory-sealed, authentic products
Free Delivery
Across Nepal on all orders
Expert Install
Certified technician setup
After-sales
Dedicated support team
Specifications
| Brand | Luminous |
| Warranty | 2 Years |
| Model | LD6000 |
| Phase | Single phase with ground |
| Capacity | 6000VA / 4800W |
| Nominal Input Voltage | 208/220/230/240VAC |
| Input Voltage Range | 110-300 VAC (Based on load at 50%) | 176-300 VAC (Based on load at 100%) |
| Input Frequency Range | 46Hz~54Hz or 56Hz~64Hz |
| Input Power Factor | <= 0.99 @ Nominal Voltage (100% load) |
| Output Voltage Range | 208/220/230/240VAC |
| Output Voltage Regulation | 1% (Batt.Mode) |
| Frequency Range (Synchronized Range) | 46Hz~54Hz or 56Hz~64Hz |
| Frequency Range (Batt. Mode) | 50Hz or 60Hz ± 0.1Hz |
| Output Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load) | <= 5 % THD (Non-linear Load) |
| Waveform (Batt. Mode) | Pure Sinewave |
| Efficiency in AC Mode | 92% |
| Efficiency in Batt. Mode | 90% |
| Required Battery Type | VRLA/ Lead Acid |
| Numbers | 16 Nos. |
| Charging Current | 1A/2A/3A/4A/6A ± 10% (Selectable) for all models |
| LCD Indicators | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
| Alarm for Battery Mode | Every 4 seconds |
| Alarm for low battery | Every second |
| Alarm for overload | Twice every second |
| Alarm for fault | Continuous sound |
| Dimensions D*W*H (mm) | 369 x 190 x 318 |
| Net Weight (kgs) | 12 |
